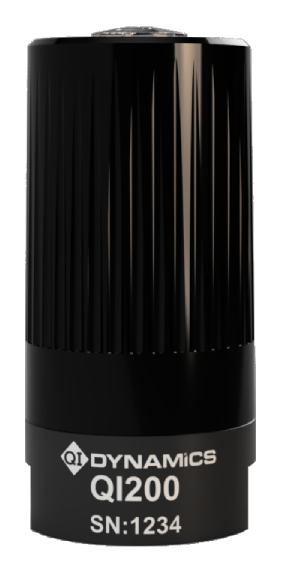

QI200 Remote Wireless Activation Switch

  • Home
  • QI200 Remote Wireless Activation Switch

QI200 Remote Wireless Activation Switch

$150.00

✔ In Stock

Activate Your QI2500 Vibration Sensor Remotely – Smarter, Safer, More Flexible Monitoring

The new QI200 Remote Wireless Switch is the perfect companion to your QI2500 Industrial Vibration Sensor, giving you remote access to view and download data.

Designed specifically for manufacturing environments, this compact wireless remote switch lets maintenance teams access the QI2500 sensor from a distance—without physically accessing hard-to-reach machines or interrupting production workflows.

Quantity

  • Technology :
    Industrial Manufacturing
  • Shipping Info :
    Lorem Ipsum is simply dummy text of the printing and typesetting industry.t
  • Warranty :
    1 Month Replacement Warranty
Payment Methods:
  • Description
  • Features
  • Specifications
  • Case Studies

Description

Key Features & Benefits

Remote Wireless Activation — Press the rugged, industrial-grade remote button to access the data on your QI2500 sensor—no cables, no ladders, no downtime.

Long-Range Reliability — Robust wireless connection (up to 100 feet in typical factory settings), penetrates walls and machinery enclosures effectively.

Battery-Powered Simplicity — Long-lasting replaceable battery in both the remote and the sensor; no external power wiring needed.

Seamless Integration — Simple pairing or the QI200 Remote and QI2500 Sensor. A single remote may be used to access multiple QI2500 Sensors.

Enhanced Safety & Efficiency — Access data on demand without opening cabinets, reaching into machines, or climbing ladders.

Built for Industry — IP67-rated remote and receiver resist dust, oil, moisture, and vibration—ready for harsh manufacturing floors, motor control rooms, and production lines.

Ideal Applications

  • Inside cabinets
  • Hard to reach locations
  • Unsafe locations
  • Convenience of accessing data from multiple sensor from a central location.
  • Compatible with all QI2500 Industrial Vibration Sensors.

General

Sensor Type Wireless triaxle vibration & temperature sensor Use Case Industries Manufacturing, food processing, mining, ski lifts Use Case Equipment Compressors, gearboxes, industrial HVAC, conveyors, pumps Setup Interface Browser-based (Wi-Fi AP mode) - no external network required

Mechanical

Dimensions 1.5” (Ø) x 3.25” (H) Standard Weights 230 g (sensor) 110 g (magnet) Base Material 304 stainless steel (food-grade) Cap Material HDPE (food-grade) Seal/Coating Internal electronics and conformally coated Mounting Flat or curved magnetic base or permanent installation using 1/4"-28 threaded mount

Environmental

IP Rating IP68 (fully waterproof) Operating Temperature -4°F to 140°F (20°C to 60°C) Humidity Suitable for high-humidity environments

Electronics & Sensing

Microcontroller Industrial with 2.4GHz Wi-Fi Accelerometer High-g MEMS Acceleration Up to 60g (~588 m/s²) Frequency 0-16,000Hz Velocity Up to 375mm/s RMS Lines per Axis 4096 Sample Rate 500Hz to 32KHz, adjustable via divider

Wireless Communication

Radio 2.4GHz Wi-Fi Protocol 802.11 b/g/n Range Up to 100ft (depending on environment) Connection Mode Built-in access point ("QI2500-AP-####")

Power

Battery Type CR123A lithium Battery Life 1-2 years typical (with default 24hr data interval) Low Battery Alert Red LED blink
