Description
General

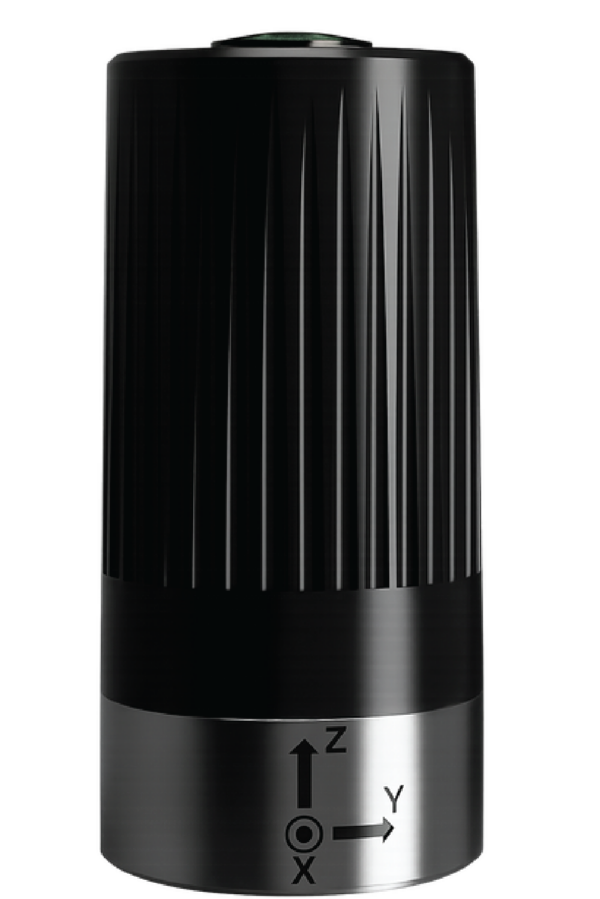

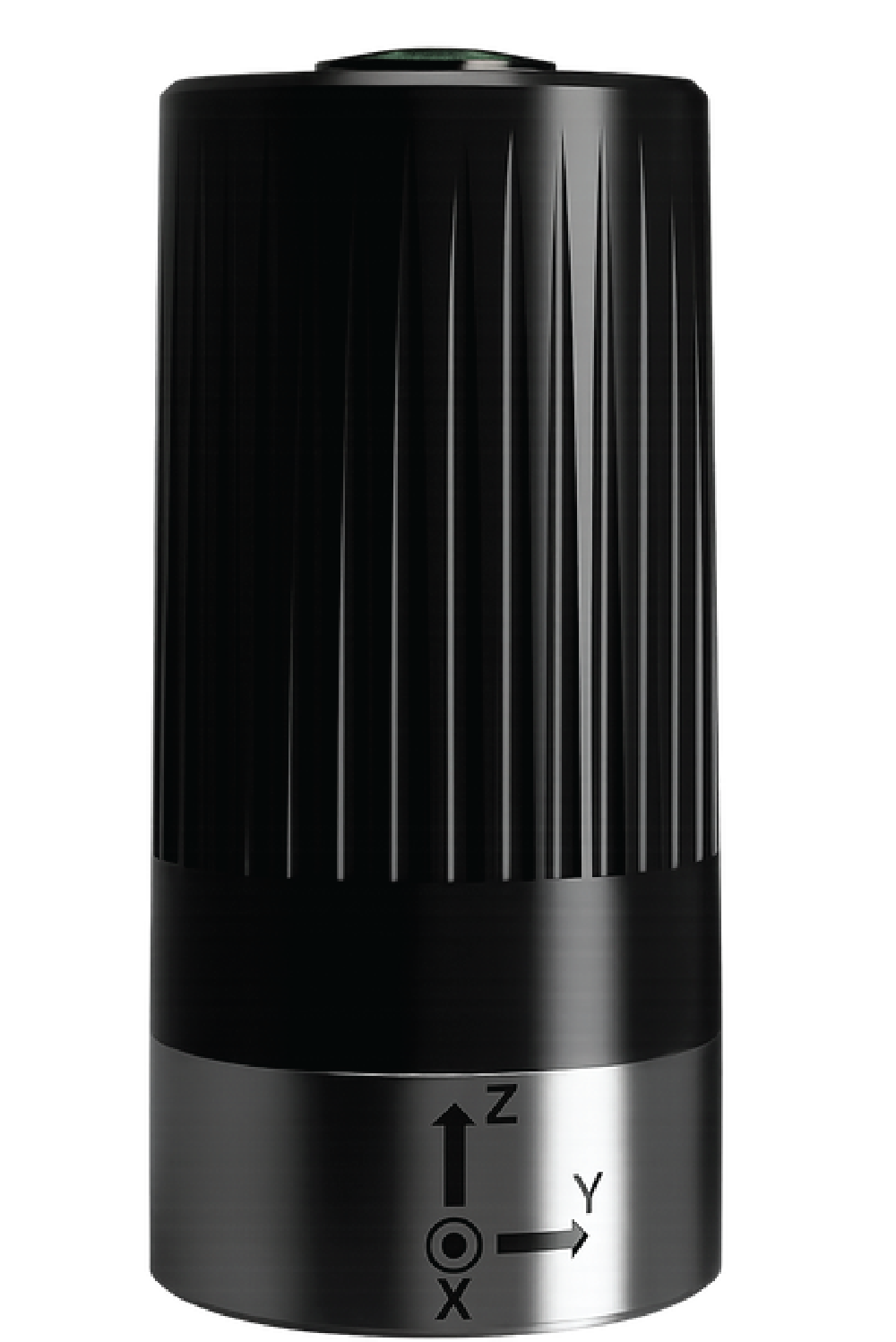

Sensor Type Wireless triaxle vibration & temperature sensor Use Case Industries Manufacturing, food processing, mining, ski lifts Use Case Equipment Compressors, gearboxes, industrial HVAC, conveyors, pumps Setup Interface Browser-based (Wi-Fi AP mode) – no external network required
Mechanical
Dimensions 1.5” (Ø) x 3.25” (H) Standard Weights 230 g (sensor) 110 g (magnet) Base Material 304 stainless steel (food-grade) Cap Material HDPE (food-grade) Seal/Coating Internal electronics and conformally coated Mounting Flat or curved magnetic base or permanent installation using 1/4″-28 threaded mount
Environmental
IP Rating IP68 (fully waterproof) Operating Temperature -4°F to 140°F (20°C to 60°C) Humidity Suitable for high-humidity environments
Electronics & Sensing
Microcontroller Industrial with 2.4GHz Wi-Fi Accelerometer High-g MEMS Acceleration Up to 60g (~588 m/s²) Frequency 0-16,000Hz Velocity Up to 375mm/s RMS Lines per Axis 4096 Sample Rate 500Hz to 32KHz, adjustable via divider
Wireless Communication
Radio 2.4GHz Wi-Fi Protocol 802.11 b/g/n Range Up to 100ft (depending on environment) Connection Mode Built-in access point (“QI2500-AP-####”)
Power
Battery Type CR123A lithium Battery Life 1-2 years typical (with default 24hr data interval) Low Battery Alert Red LED blink
